Site: Urbacon Toronto - 281 Front Street

Company: Urbacon Data Centre Solutions
Metro: Toronto
Province: Ontario
Country: Canada
Region: North America
Region: Americas
Region: World
Address:
Utility Provider: Toronto Hydro
Site Stats:
Current Under Construction Potential Expansion Total at Full Buildout
Building SqFt: 168,000 168,000
Gross SqFt:
Usable SqFt:
Office SqFt:
Power (MW): 6.40 6.40 12.80

At the intersection of Front Street East and Parliament Street, 281 Front is less than one and a half kilometers from Canada’s financial heart, and directly abutting 151 Front Street, which is Toronto's carrier hotel.

The building replaced the Toronto Public Library's former administrative building that was demolished to make way for the new data centre.

Facility

As well as high ceiling heights and large capacity floor loads, the data centre features dedicated generators for each data floor, underground fuel storage, central electrical room and switchgear, and redundant risers for mechanical, electrical and communications.

There are also redundant fibre points of entrance and easy access to existing fibre networks, as well as critical power of up to 2.0MW per data floor

Power

Ontario’s power generation capacity is 37,000 MW with Ontario Power Generation, one of North America’s largest generators, responsible for 70%. Furthermore, Greater Toronto has one of the most extensive fibre-optic cable networks in North America and a highly integrated telecom network.The building itself has 8MVA (6.4 MW) power available on day one, with a design capacity of up to 16MVA (12.8 MW)

Security

The building has 7x24x365 security and surveillance, ballistic glass and walls, as well as state-of-the-art security equipment including biometric readers

Map and Nearby Locations:

281 Front St E, Toronto, ON M5A 4L2, Canada

SITES within 15 miles of Urbacon Toronto - 281 Front Street

Show SqM



Distance Site name SqFt MW
0.05 miles Equinix Toronto TR2 106,500 10.00
0.63 miles 7L Networks
0.95 miles TNW Toronto
1.07 miles Equinix Toronto TR4 37,000 2.24
1.07 miles CenriLogic Toronto 16,000
1.13 miles Cogeco Peer1 King Street 25,000
1.19 miles Aptum Front Street 1.00
1.19 miles 151 Front Street
1.20 miles Neutral Data Toronto
1.20 miles Cologix Toronto TOR1 25,000
The site was built next to Equinix's TR2 site in downtown Toronto

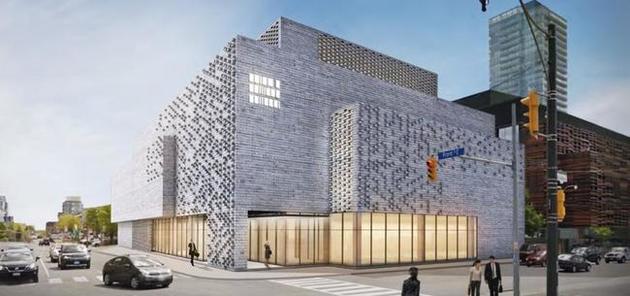

Looking southeast across Front and Parliament streets to the new Downtown Data Centre
Source: Urbacon

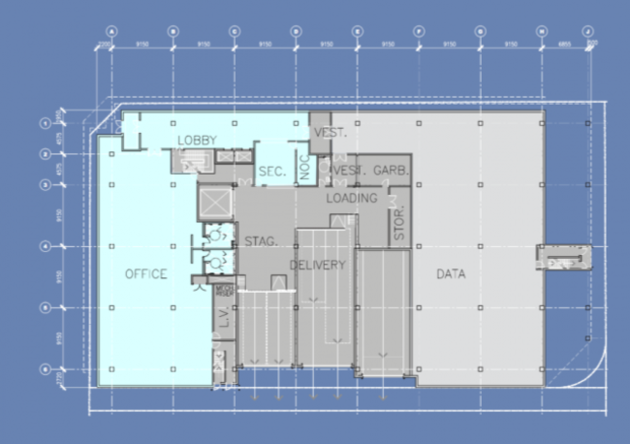

Ground Floor Layout
Source: Urbacon

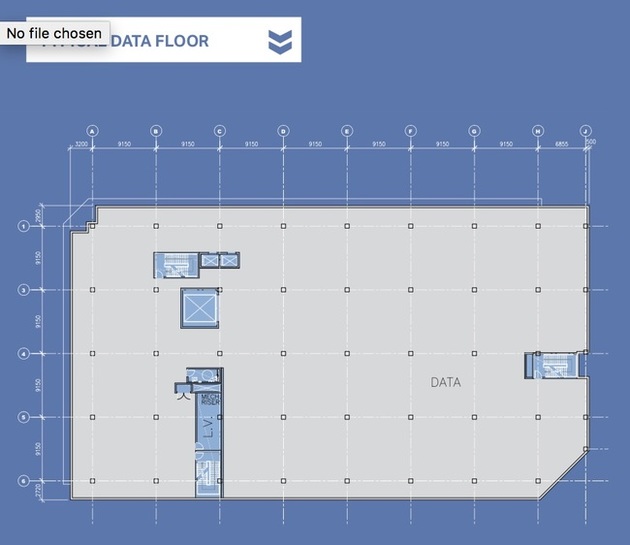

Typical Data Floor
Source: Urbacon

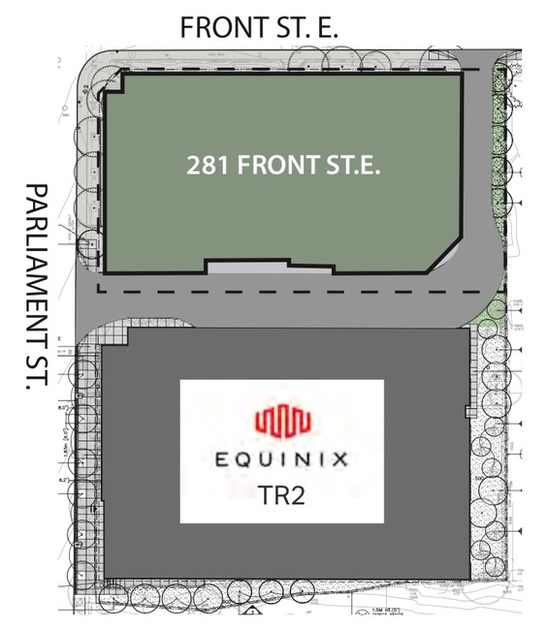

The site was built next to Equinix's TR2 site in downtown Toronto
The Site is Adjacent to Equinix TR2

The site was built next to Equinix's TR2 site in downtown Toronto

Source: Urbacon

December 2018

PDF Data Sheet for Urbacon's 281 Front Street in Toronto
