Site: CoreSite Santa Clara Campus

Company: CoreSite
Metro: San Francisco Bay Area
State: California
Country: United States
Region: North America
Short Code: SV3; SV4; SV5; SV6; SV7; SV8
Utility Provider: Silicon Valley Power
Ownership: CoreSite owns the building.

CoreSite's Santa Clara Campus contains six datacenter buildings. (SV3, SV4, SV5, SV6, SV7 and SV8)

SV3

SV3 was first building on the campus, but was completely leased out to a single tenant, Facebook. The social network has since ended their lease and CoreSite has since backfilled the facility.

SV4

SV4 was CoreSite's first multi tenant building on the campus was completed in 2011. Total capital invested in the building has been $93 million.

SV6

In 2016, CoreSite delivered SV6, a 136,580 SF powered shell building, to tenant Amazon Web Services. SV6 is a two-story data center built utilizing a modular structural steel system. The exterior facade features approximately 44,000 sf of terra-cotta rain screen system manufactured in Germany.

SV7

CoreSite SV7 Data Center is a new four-story, 246,000 sf, fully built-out data center built utilizing a modular structural steel system. Electrical and HVAC systems support upto 18 MW of critical IT load. Highlights of the build include ten 2.5 MW emergency generators, a 60,000-gallon underground fuel storage tank, raised floor systems and a 10,000-pound-capacity freight elevator. The exterior facade features a terracotta rain screen system manufactured in Germany.

SV8

SV8 is currently under construction. The building will be four stories with 175,000 sqft. The first phase will be 58,000 square feet with 6 MW of critical power. When fully built out SV8 will support 18 MWs.

SV9

In April 2019, Coresite acquired a 3.8-acre land parcel with a single-story office building located adjacent to our Santa Clara campus, for a purchase price of $26 million. CoreSite expects to develop SV9 after the existing office leases expire.

Data Center Address Building SqFt Gross SqFt Power (MW) Notes
SV3 2901 Coronado Drive 50,000 25,000 Built in 2010
SV4 2972 Stender Way 100,000 50,000 Built in 2011
SV5 2900 Stender Way 100,000 50,000 Built in 2013
SV6 3001 Coronado Drive 136,580 65,000 Data Center built for private client
SV7 3020 Coronado Drive 230,000 75,000 Built in 2016
SV8 3045 Stender Way 175,000 100,000 6 58,000 sqft under construction with expected Q3 2019 opening
Total 791,580 365,000

CoreSite Santa Clara Campus's campus consists of many buildings

Site Address Gross SqFt Usable SqFt Power (MW)
CoreSite SV3 2901 Coronado Drive, Santa Clara, CA 95054
50,000 50,000
CoreSite SV4 2972 Stender Way, Santa Clara, CA 95054
100,000 50,000 4.80
CoreSite SV5 2900 Stender Way, Santa Clara, CA 95054
100,000 50,000
CoreSite SV6 3001 Coronado Drive, Santa Clara, CA 95054
65,000
CoreSite SV7 3020 Coronado Drive, Santa Clara, CA 95054
75,000 18.00
CoreSite SV8 3045 Stender Way, Santa Clara, CA 95054
CoreSite SV9 2905 Stender Way, Santa Clara, CA 95054

Map:

SITES within 15 miles of CoreSite Santa Clara Campus

Show SqM



Distance Site name SqFt MW
0.02 miles CoreSite SV4 100,000 4.80
0.06 miles CoreSite SV5 100,000
0.07 miles CoreSite SV6 65,000
0.08 miles CoreSite SV3 50,000
0.08 miles CoreSite SV9
0.11 miles CoreSite SV8
0.13 miles CoreSite SV7 75,000 18.00
0.27 miles 2820 Northwestern - Digital Realty 40,000
0.29 miles Vantage Santa Clara SC1 375,000 75.00
0.34 miles 2401 Walsh - Digital Realty

Deployments

List of companies deployed at the site
Workers putting on insulation to the exterior of SV7
CoreSite SV4 was completed in 2011
CoreSite's SV8 building is starting to take shape. (January 2019)
SV7 Chiller Plant
Posted in CoreSite SV7
CoreSite's Santa Clara Campus

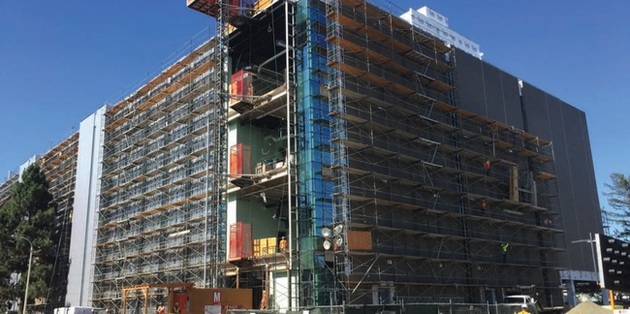

Workers putting on insulation to the exterior of SV7
SV7 Under Construction

Workers putting on insulation to the exterior of SV7

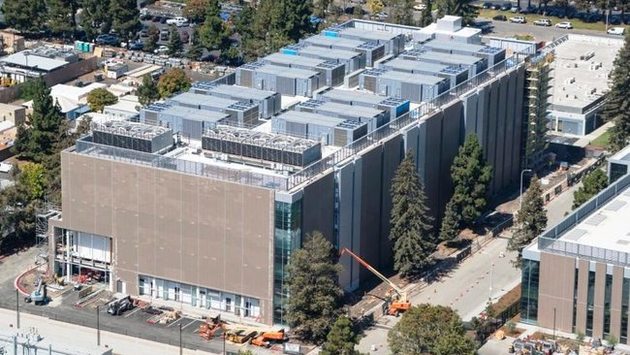

SV7 Near the End of Construction
Source: MATT Construction
CoreSite SV7 Completed
CoreSite SV4 was completed in 2011
SV4 at 2972 Stender

CoreSite SV4 was completed in 2011

CoreSite SV4 from the Air
CoreSite SV7 from the Air
New Chiller Enclosures at SV8
CoreSite's SV8 building is starting to take shape. (January 2019)

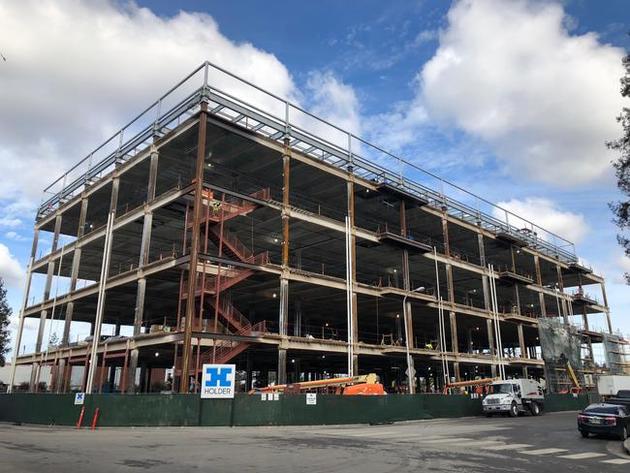

SV8 Under Construction

CoreSite's SV8 building is starting to take shape. (January 2019)


July 2019

CoreSite's Silicon Valley Overview. Includes stats on multi-tenant facilities (SV1, SV2, SV4, and SV7)

December 2018

SV4 Data Sheet (PDF)

December 2018

SV7 Data Sheet (PDF)
