QTS Santa Clara

Login to Add Favorite Login to Get a Quote
Login to Add Favorite Login to Get a Quote
Site: QTS Santa Clara

Company: QTS Data Centers
Metro: San Francisco Bay Area
State: California
Country: United States
Region: North America
Region: Americas
Region: World
Address:
2807 Mission College Boulevard

Total Building SqFt: 135,000
Gross SqFt: 80,000
Usable SqFt: 53,000
Total Power: ??? NN
Interested in this information? Contact us
Megawatts

QTS's Santa Clara campus has two distinct data center buildings.

Site Address Gross SqFt Usable SqFt Power MW
Santa Clara I 2807 Mission College 65,000 41,000 8.6
Santa Clara II 2805 Mission College 70,000 12,000 2.5
Total 135,000 53,000 11.1

Power:

All power cabling below floors is waterproof conduit encased, with waterproof connectors to all equipment

  • Building I
    • Power delivered via dual entrances from redundant Silicon Valley Power substations
    • UPS in an N+1 configuration
    • 10,200 gallons of on-site diesel fuel with multiple refueling contracts
  • Building II
    • 4 600 KW Liebert UPS in an N+1 configuration deliver 1.8 MW of conditioned power to the data center floor
    • Supported by 3 2.0 MW generators in a N+1 configuration
    • 19,800 gallons of diesel fuel on-site with refueling contracts

Cooling:

  • Building I
    • 4 state-of-the-art chillers provide cooling to the data center floor and non-critical office space, N+1 Chiller plant
  • Building II
    • 2 state-of-the-art 500 ton chillers provide cooling to the data center floor and non-critical office space, N+1 Chiller plant

Map and Nearby Locations:

2807 Mission College Boulevard

SITES within 15 miles of QTS Santa Clara

Show SqM



Distance Site name SqFt MW
0.09 miles China Telecom Santa Clara
0.29 miles Cyxtera Santa Clara SC9 124,383 10
0.29 miles 4650 Old Ironsides 84,383
0.35 miles 4700 Old Ironsides 90,139 6
0.35 miles Cyxtera Santa Clara SC8 90,139 10
0.73 miles Amazon 2305 Mission College Blvd
0.91 miles Intel Santa Clara D2P3 21
0.95 miles Evocative Santa Clara SJC11 73,000 5
0.98 miles EdgeCore Silicon Valley
1.14 miles zColo Santa Clara 26,900 3

QTS Santa Clara Photos


QTS at 2805/2807 Mission College Blvd

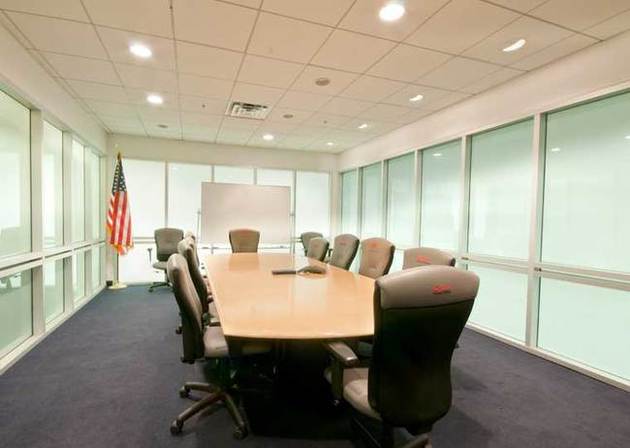

Conference Room

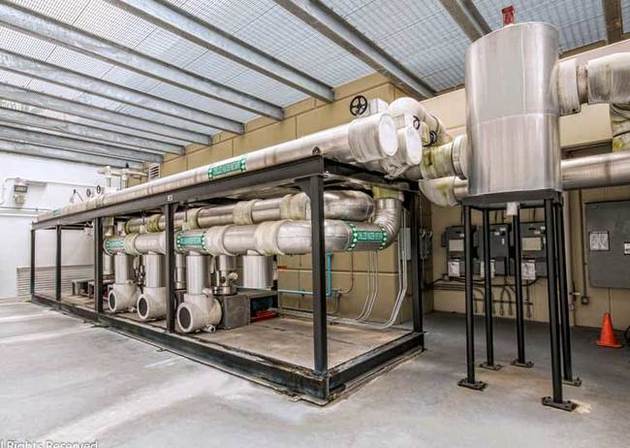

Mechanicals
