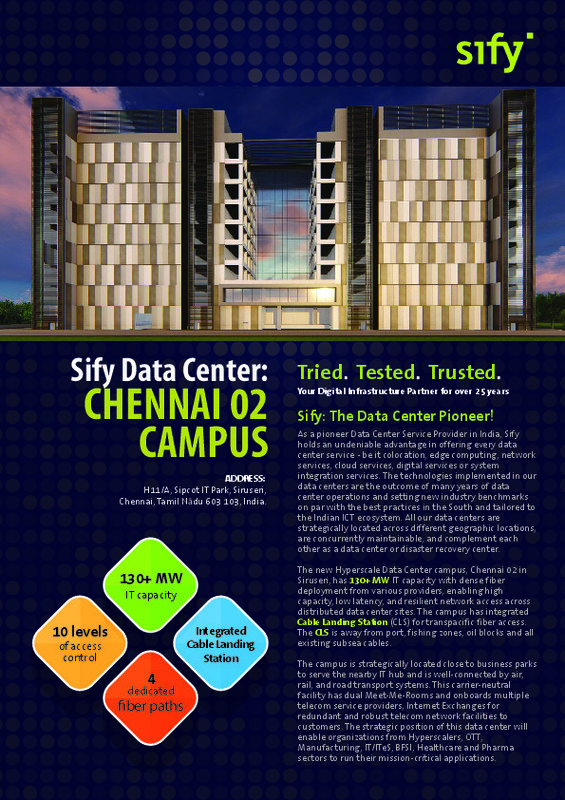

Sify: Chennai 02

Sify’s Chennai 02 campus is strategically located close to business parks to serve the nearby IT hubs and is well-connected via railways, airways, and the road transport systems. The facility will feature three towers with capacity for over 13,000 racks. The campus has 4 diverse fiber paths and offers a dedicated on-premise 230 KV GIS substation for high availability with 10 levels of access control from entry to cage.

Campus Features:

• RCC shell and core Floors G+7
• Data Hall Room Height: 6300 mm slab to slab. 5100 mm clearance from slab to bottom of beam.
• Floor Type: Raised, 900 mm.
• Structural Design: IS 456:2000,
• Importance Factor 1.5.
• Structural Floor Loading: 2100 kg/sqm.
• Freight Elevators: 2 freight elevators with 4-ton capacity.
• Fire Rating of Walls & Doors: 2 hours.

Power:

• Power Feeder: Onsite 230 KV GIS substation. (33 KV substation for Day 1 use) .
• Power Capacity: Designed for 130+ MW IT capacity .
• Power Density: Power density of 8-25 KW for air cooled racks and upto 150 KW for Liquid cooled workloads .
• Transformer/Generator Configuration: N+2, N+2C, N+N/3 .
• Downstream Power Configuration: N+N power distribution with overhead bus bars .
• Onsite Fuel Storage: 48 hours, agreement with 2 fuel supply companies and another fuel supply agency for supply of fuel within 4 hours

Network:

• MMR: Dual meet me room for telecom fiber links; N+N power with UPS and 5 minutes battery backup .
• Carrier Neutral: Multiple IXs, IP Transit POPs, Multiple Telecom MUXs.
• Four telecom entry paths to the MMR.
• MDF (Network Closet) in every floor, connected to MMR via 4 network risers
