Site: NTT Frankfurt 1 Campus

Company: NTT
Metro: Frankfurt
State: Hesse
Country: Germany / Deutschland
Region: Western Europe
Region: Europe
Region: EMEA
Region: World
Short Code: FRA1
Eschborner Landstraße 100, 60489 Frankfurt am Main, Germany

Gross SqFt: 699,654
Total Power: ??? NN
Interested in this information? Contact us

The e-shelter Campus Frankfurt 1 data center is the main site of e-shelter, which has a total of around 60,000 sqm of data center and technical space. This makes the site one of Europe’s largest. The almost 54,000 sqm site, which is owned by e-shelter, offers space for five free-standing buildings which have been constructed and equipped especially for use as data centers. The latest buildings, Component F and G will be opened in 2016. The site also has an office building and the e-shelter event center.

Building H

Building H was opened in November 2017


  • Power supply at 110 kV-level from two substations from two separate feeds
  • Additional supply by second provider (100 percent diverse network) at 10 kV level
  • Own substation with three 110/20 kV transformers n+1
  • Two separate UPS systems (A- and B-supply) as well as redundant emergency power system with diesel generators


  • Monitoring by e-shelter own 24/7 control centers
  • Armed Security staff from e-shelter security GmbH
  • Standardized operation processes with amplified technical systems redundancy in order to ensure maximum reliability
  • Access control via non-contact chip and PIN or optional biometrics signature
  • Secured perimeter zones with electronically monitored security fencing system, incorporating anti-climb and anti-tunneling protection


  • Carrier-neutral
  • Carrier-mix from global Tier 1 supplier to local supplier (350+ Carrier)
  • Direct, redundant connection to DE-CIX
  • Via our partner IX Reach direct connection to international internet exchanges
  • Cross-Connects are realized via dedicated, redundant designed pipelines
  • Datacenter Connects between e-shelter data center Campus Frankfurt 1 and other e-shelter locations, e.g. Frankfurt 3 and Berlin; on request as well to commercial third-party data centers in the Rhine-Main area
  • direct fibre optic connection to the e-shelter Frankfurt 3 data center in Rüsselsheim.

Map and Nearby Locations:

Eschborner Landstraße 100, 60489 Frankfurt am Main, Germany

SITES within 15 miles of NTT Frankfurt 1 Campus

Show SqM

Distance Site name SqFt MW
0.02 miles Amazon FRA54
0.16 miles Global Switch Frankfurt 304,705 22.40
0.60 miles Colt Frankfurt West 107,639 25.20
0.69 miles Digital Frankfurt Sossenheim 179,757 27.00
0.80 miles CyrusOne Frankfurt I 53,819 36.00
0.80 miles CyrusOne Frankfurt II 80,729 17.60
0.80 miles CyrusOne Frankfurt III 123,786 22.00
0.83 miles CyrusOne Frankfurt IV 51,667 11.00
1.93 miles Level3 Frankfurt (Rüsselsheimer)
2.17 miles Equinix Frankfurt FR4 FR6 86,002

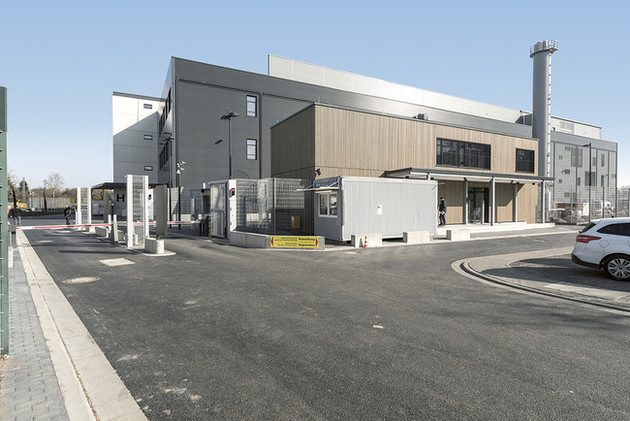

Building H was finished in November 2017 and has 17,797 sqm

Building H was finished in November 2017 and has 17,797 sqm
Building H was completed in 9 months

Building H was finished in November 2017 and has 17,797 sqm

Source: Drees & Sommer
Lego kit of e-shelter's FRA 1 Campus
Source: e-shelter
