Site: 365 Main (SFR2) Digital Realty

Company: Digital Realty Trust
Metro: San Francisco Bay Area
State: California
Country: United States
Region: North America
Short Code: SFR2
Address: 365 Main Street, San Francisco, CA 94105
Gross SqFt: 226,981
Usable SqFt: 90,000
Total Power: 15.0 Megawatts

Digital Reality's 365 Main datacenter is the second best-connected building in San Francisco, after 200 Paul. Originally built as a military tank assembly plant, Digital Realty’s data center at 365 Main Street has a solid steel and concrete construction, extensive security capabilities

365 Main History:


  • 2010: Digital Realty acquired this site and the rest of the 365 Main portfolio for $725 Million
  • 2003: 365 Main acquired the data center for $2.6 million in a court-approved deal.
  • 2001: AboveNet constructed the datacenter for $125 million, which includes $30 million seismic retrofit.

Building:


  • Peering Exchanges SFMIX and AMS-IX are on site
  • 6 stories (Top = Mechanical Penthouse. Bottom = Garage)
  • Four (4) tenant floors between the garage and mechanical penthouse
  • Flood Zone: Zone X (Unshaded): Outside 500-year floodplain
  • Seismic: Zone 4
  • The building earned an “essential facility” designation thanks to an award-winning friction pendulum system upgrade which isolates the base of the building from its floors, ensuring critical operations are maintained during and after a major seismic event.

Electrical Power:


  • Utility Power Capacity: 15,000 (kW)
  • UPS Power Capacity: 8,600 (kW)
  • UPS Redundancy: N+2 - (8) Primary, (2) Redundant
  • Generator Redundancy: N+2 - (8) Primary, (2) Redundant
  • DC Power is available

Map:

365 Main Street, San Francisco, CA 94105

SITES within 15 miles of 365 Main (SFR2) Digital Realty

The 360 Spear data center is also pictured next to the 365 Main data center. Both buildings are owned by Digital Realty Trust
The 360 Spear data center is also pictured next to the 365 Main data center. Both buildings are owned by Digital Realty Trust

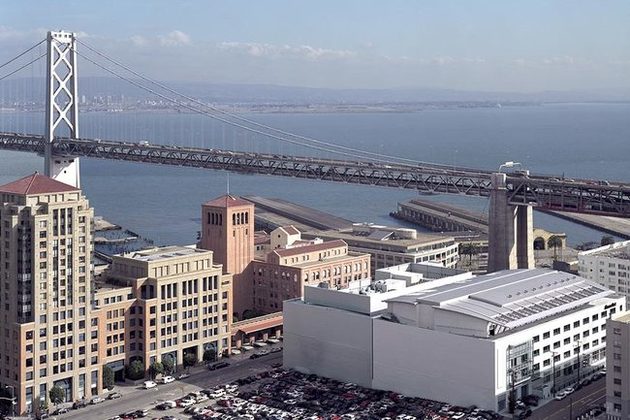

365 Main with the Bay Bridge in the Background

The 360 Spear data center is also pictured next to the 365 Main data center. Both buildings are owned by Digital Realty Trust

365 Main with the Old AboveNet Logo
