Middletown Data Center

11.2 MW (6.9 MW is Critical IT Load and 4.3 MW is Mechanical Supporting)

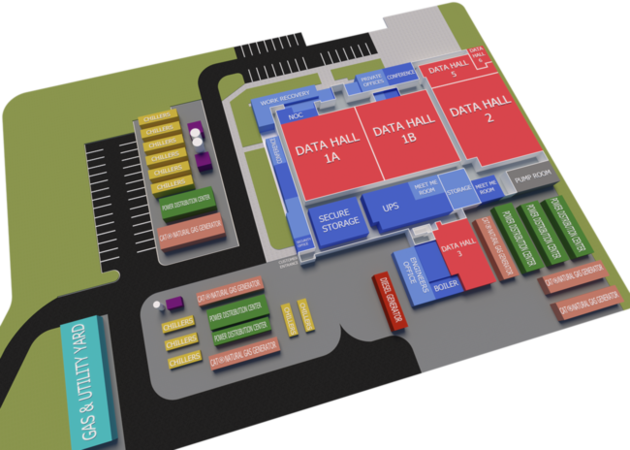

FLOOR LOAD CONFIGURATIONS

Data Hall 1a
8,256 sq. ft. raised floor (2 MW of IT)
Power & cooling density = 8.88kW / rack

Data Hall 1b
8,344 sq. ft. raised floor (2 MW of IT)
Power & cooling density = 8.88kW / rack

Data Hall 2
9,138 sq. ft. raised floor (2 MW of IT)
Power & cooling density = 8.0kW / rack

Data Hall 3
2,279 sq. ft. raised floor (169 kW of IT)

Data Hall 4
2,667 sq. ft. raised floor (169 kW of IT)

Data Hall 5
2,279 sq. ft. raised floor (380 kW of IT)
Power & cooling density = 6.33kW / rack

Data Hall 6
520 sq. ft. raised floor (25 kW of IT)

33,483 sq. ft. of total white space
