Edged Energy: Bilbao-Arasur BIL03

Short Code: BIL03
Year Built: 2024
PUE: 1.15
Utility Provider: Iberdrola
Floors: 3

Sites on this Campus:

This site is leased from Merlin Properties in the Merlin: Bilbao-Arasur building
░░░░░░░ Login to view SqFt
Total Building Size
░░░░ Request Dataset MW
Total Power

The Bilbao-Arasur Campus, located in the Arasur hub south of Bilbao, sits at a high-speed fiber junction. It features three data centers and an administrative building, with expansion potential. BIL03 is the first building of Edged Energy's Bilbao-Arasur Campus. The complex is powered by an adjacent 135 MW solar farm, ensuring affordable clean energy.

POWER

  • New build construction; three stories, concrete slab and structural steel; two loading dock bays
  • Utility Provider: Iberdrola
  • Utility Power: Radial
  • Utility Voltage: 30 kV
  • Power Delivery: Revenue-grade, transparent, real-time metering
  • UPS: Battery backup supporting all electrical and mechanical systems; N+1 redundancy
  • Generators: 35 MW of backup power in a redundant configuration
  • Configuration: N+1
  • Multiple fiber providers; three diverse points of entry
  • Tier III design concurrently maintainable
  • 100% uptime SLA

Map and Nearby Locations:

Edged spain Merlin Properties. New York-Bilbao-Arasur
Edged Energy Sites
Nearby Facilities

Sites within 15 miles of Edged Energy: Bilbao-Arasur BIL03

Distance Site About
0.02 miles Merlin: Bilbao-Arasur
The Bilbao-Arasur Campus, located in the Arasur hub south of Bilbao, sits at a high-speed fiber junction. It features three data centers and an administrative building, with expansion potential.
0.02 miles Hyperscale Data Center Request Dataset
In 2024, Meta leased this data center from Spanish real estate company Merlin Properties, which was developed in collaboration with U.S.-based Edged Energy.
0.16 miles Edged Energy: BIL02
BIL02 is the second building of Edged Energy's Bilbao-Arasur Campus.
0.35 miles Edged Energy: BIL01
BIL01 is the third building of Edged Energy's Bilbao-Arasur Campus.

Edged Energy: Bilbao-Arasur BIL03 Data Center Photos (See all)

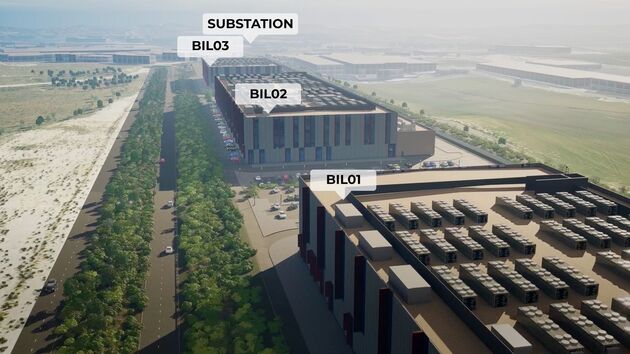

Rendering of Edged Energy Bilbao-Arasur Campus in Spain
Source: Edged Energy
Rendering of Edged Energy Bilbao-Arasur Campus in Spain
Source: Edged Energy
Rendering of Edged Energy Bilbao-Arasur Campus in Spain
Source: Edged Energy

Operating Company

Operated by:

Edged Energy is a colocation and data center provider. The company also has data centers in development across the US.

Its Spain business is a subsidiary of Endeavour in collaboration with Merlin Properties.
